Unstoppable in the store, in production, as well as in and on HGVs.

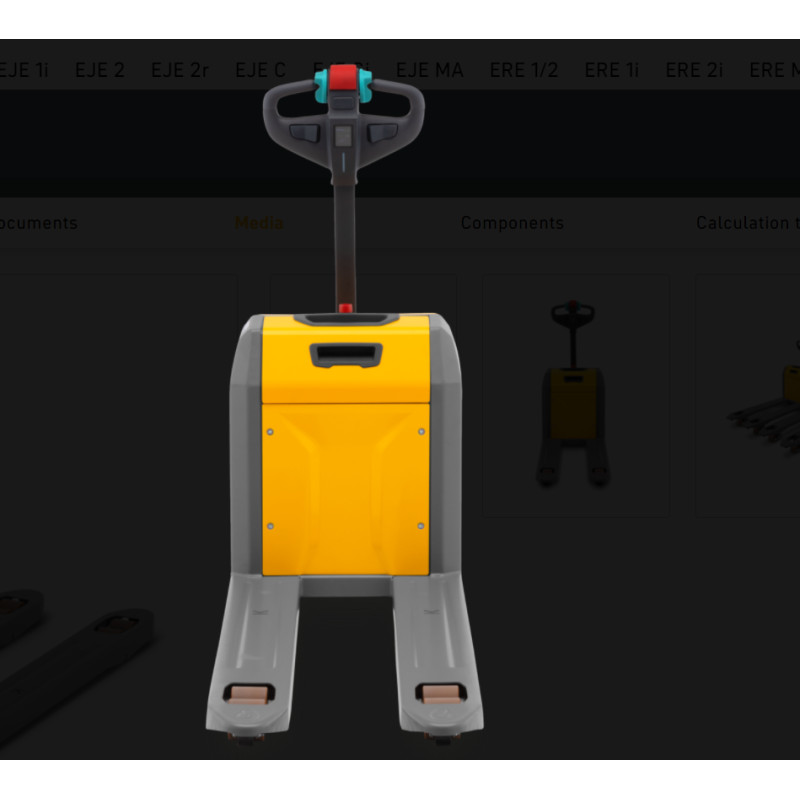

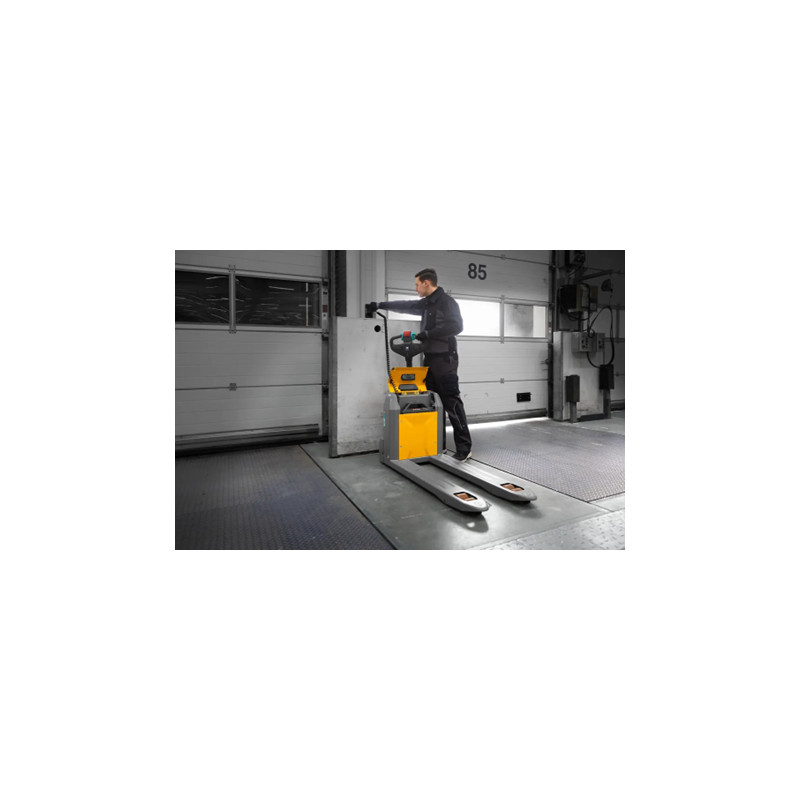

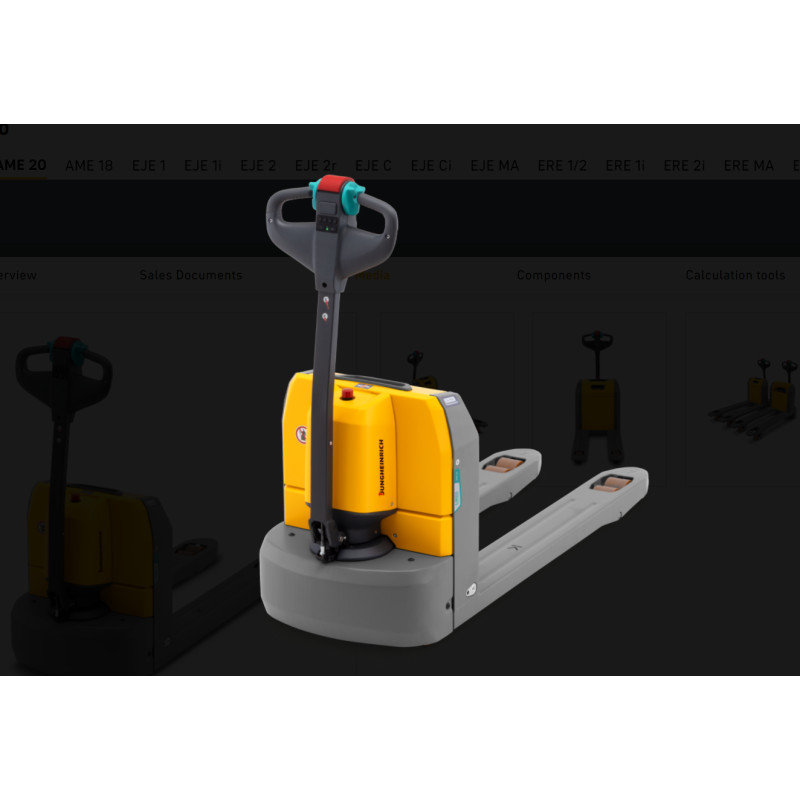

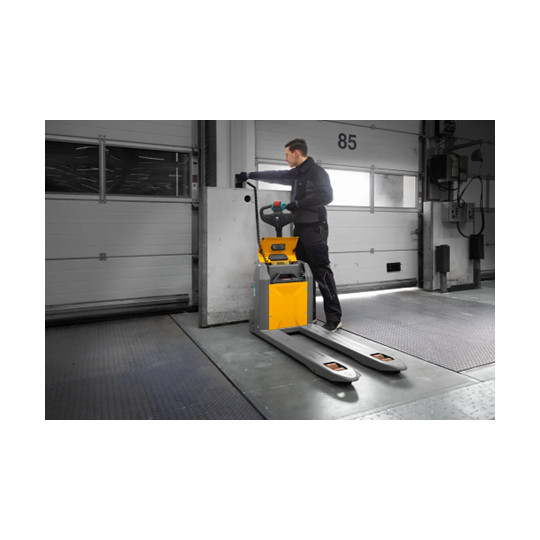

The Jungheinrich AME 20 pallet trucks particularly demonstrate their strengths where space is tight or service weight is critical. They impress with their manoeuvrability, load capacity and reliability – even under challenging logistical conditions. With a capacity of 2,000 kg combined with compact design and low service weight, they are ideal for daily pallet transport and use on HGVs. One-handed operation from both sides ensures simple and intuitive control – a clear advantage in daily operation.

The AME 20 offers excellent energy efficiency and availability: thanks to modern lithium-ion technology, it is energy efficient, can be flexibly charged between uses via the built-in charger and features a maintenance-free drive motor. Safety naturally takes centre stage: a reinforced steel construction ensures stability, while protected support wheels and excellent driving and cornering stability significantly reduce risks to people, the truck and cargo.

All benefits at a glance:

• Powerful mid-range electric pedestrian pallet truck, ideal for use on HGVs.
• Intuitive and safe operation, along with high driving and cornering stability.
• Reinforced steel construction and protected support wheels provide robustness and safety.
• Optimal availability thanks to lithium-ion battery and built-in charger.
• Durable and low-maintenance – manufactured with proven Jungheinrich quality.

Efficiency: Our trucks are engineered to deliver maximum performance with exceptional efficiency, combining power, robustness, and cost-effectiveness for everyday operations. Designed to handle demanding work environments, they are ideal for daily use, offering low energy consumption, a maintenance-free drive motor, and a lightweight, agile, and compact design. Enhanced durability and increased load capacity further ensure reliable performance across a wide range of applications.

Outstanding energy efficiency is a key advantage, making these trucks highly cost-effective over their extended life cycles. The flexibility of operation is enhanced through booster charging of the lithium-ion battery, allowing quick top-ups whenever needed. Charging is simple and convenient via any standard socket using the built-in charger, while the automatic shutdown feature when not in use helps reduce operational costs and contributes to energy savings.

Powered by proven lithium-ion technology, these trucks significantly reduce maintenance requirements, saving both time and money. Rapid and booster charging capabilities ensure high availability and minimal downtime, while the batteries offer up to three times the lifespan compared to traditional lead-acid alternatives. Safety is also prioritized with a high-quality battery management system, ensuring reliable and secure operation at all times.

Safety: The equipment is designed to offer the best conditions for safe and efficient operation, combining intuitive handling with advanced protection for people, machinery, and goods. Its user-friendly design ensures operators can work confidently while minimizing risks in demanding environments.

Comfort and reliability are key highlights, with enhanced stability provided by two sprung support wheels positioned beside the drive wheel. Smooth and precise manoeuvring is achieved through the optimal alignment of software and chassis, allowing for controlled movement even in tight spaces. With an 8% gradeability and fully integrated, protected support wheels, the system delivers dependable performance across varying operating conditions.

Functionality is further improved with features such as a slow travel button, enabling easy manoeuvring when the tiller is in a vertical position. Two selectable travel programs allow speed adjustment (2.5 km/h and 5.5 km/h) to suit different tasks. Additionally, precise control of fork insertion depth helps prevent damage to pallets and equipment, while easy transverse pallet lifting is made possible through tandem fork rollers and protected entry rollers, ensuring smooth and efficient material handling.

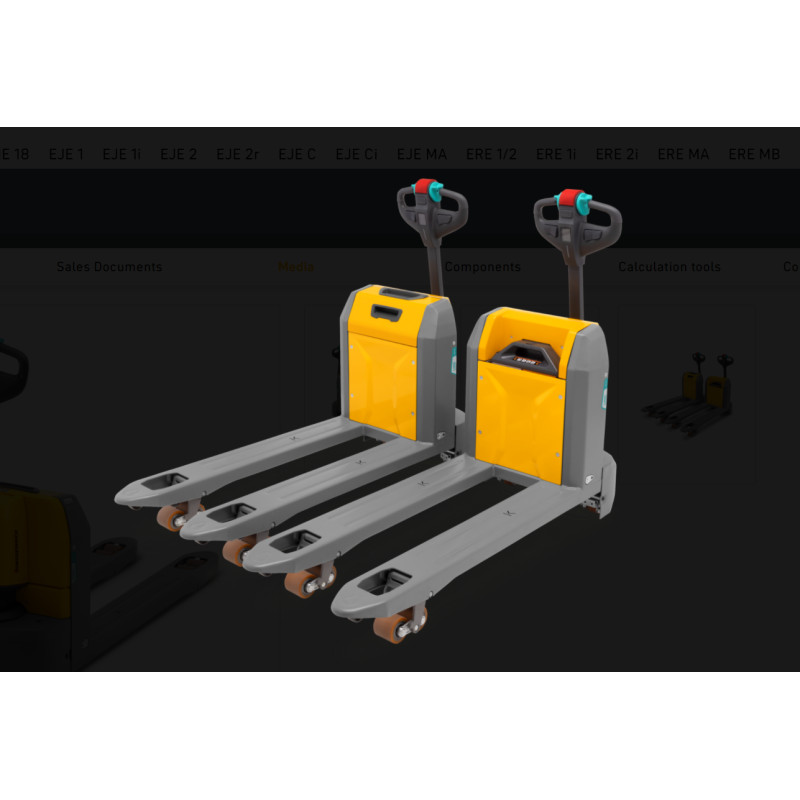

Individuality: Engineered to adapt to the unique demands of your business, the Jungheinrich AME electric pedestrian pallet truck delivers robust, reliable performance for flexible goods transport both indoors and outdoors. Designed with versatility and ease of use in mind, it features an ergonomic tiller head that supports convenient one-handed operation from either side, along with a built-in charger for effortless power management. Prominent LED strips provide clear visibility of the truck’s status, while secure PIN code access ensures controlled operation. All controls, including the display, are seamlessly integrated into the tiller for intuitive handling. For enhanced precision, the forks are marked at 800 mm to support accurate transverse pallet lifting, and a range of fork lengths is available to suit varied applications. A practical storage compartment on the battery lid adds further convenience, making this pallet truck a dependable and user-friendly solution for everyday material handling.
